500 kg Container Carts
Designed for collecting, maintaining, and storing goods. Models equipped with a roof can be locked to secure sensitive items
Product benefits
- Solid construction fully welded.
- Capacity:
- 1000×700mm: 460L.
- 1200×800mm: 640L.
- Half-foldable front panel.
- 16mm thick medium wooden bottom tray, embedded, crack and splinter resistant. No splinters.
- Ergonomic push height: 1090mm.
- Wheels: 2 fixed + 2 swivel with brakes, silent and non-marking. 50% initial effort reduction. Compliant with EN 1757 standard.
- Specific features for each model:

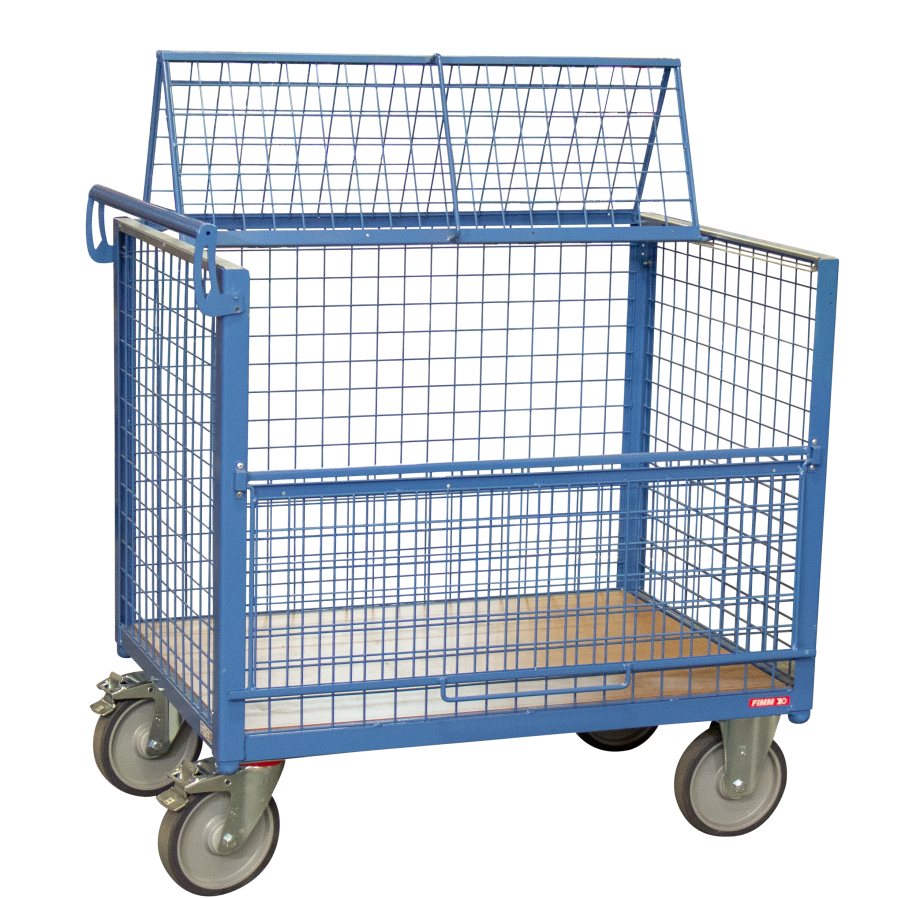

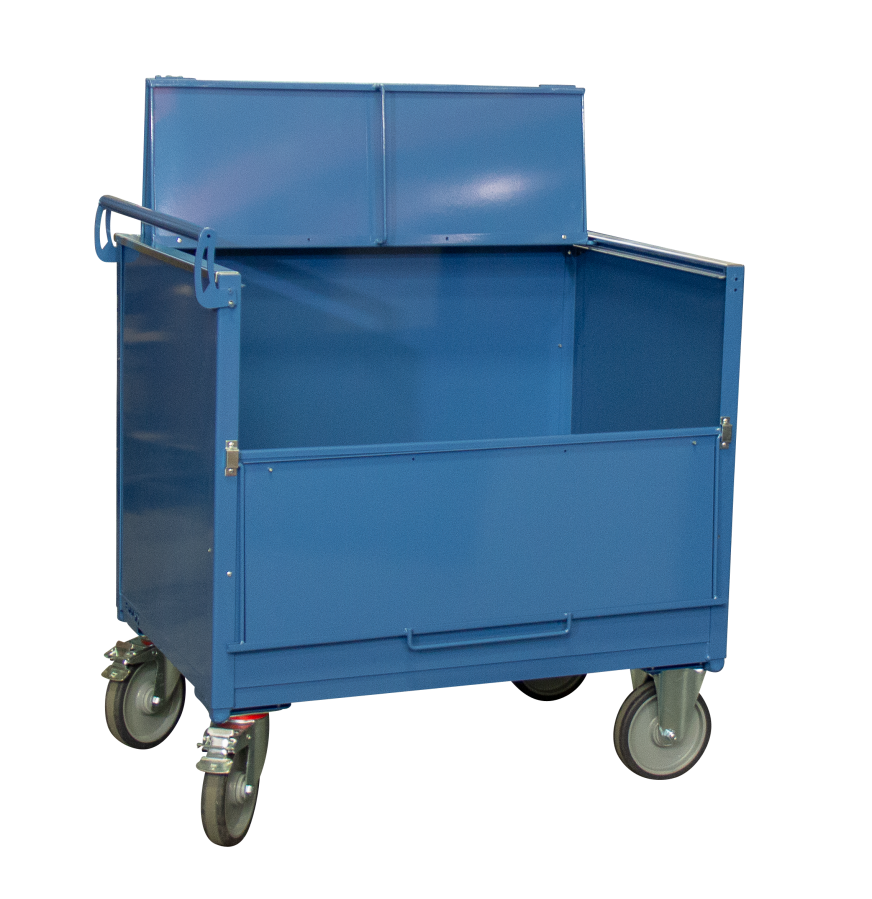

- Models with roof: lockable with padlock. Almost complete opening for easy loading and unloading.
- Finishing:

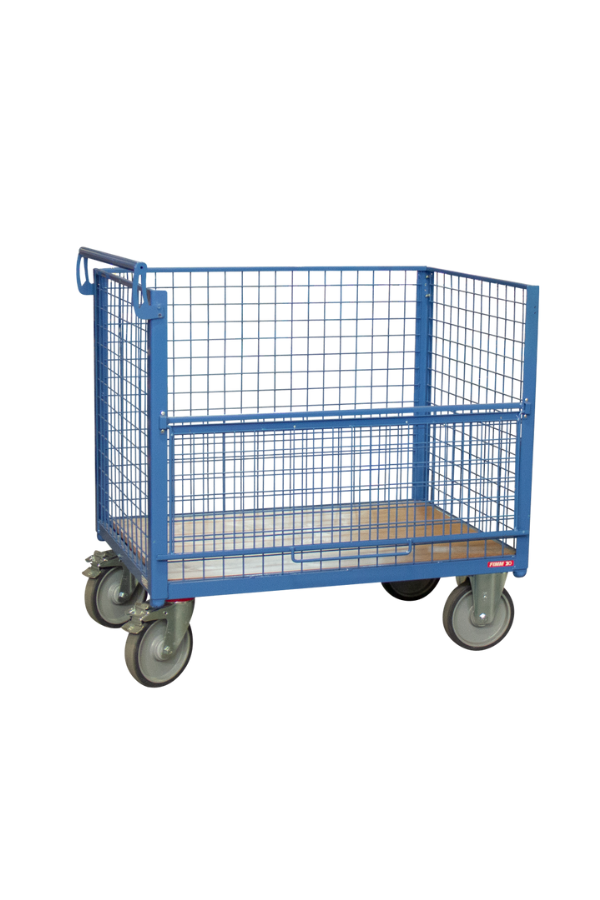

- Mesh: 50×50mm mesh.

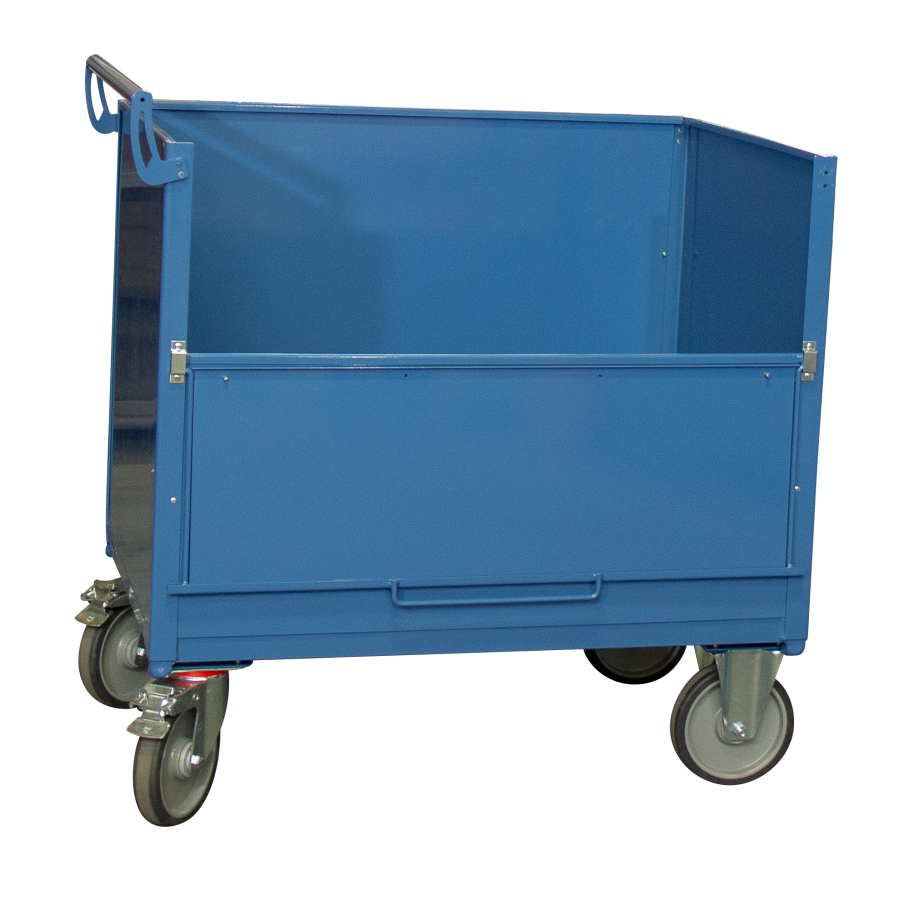

- Sheet: 15/10th thickness. The bottom tray is also covered with a 20/10th thickness sheet.

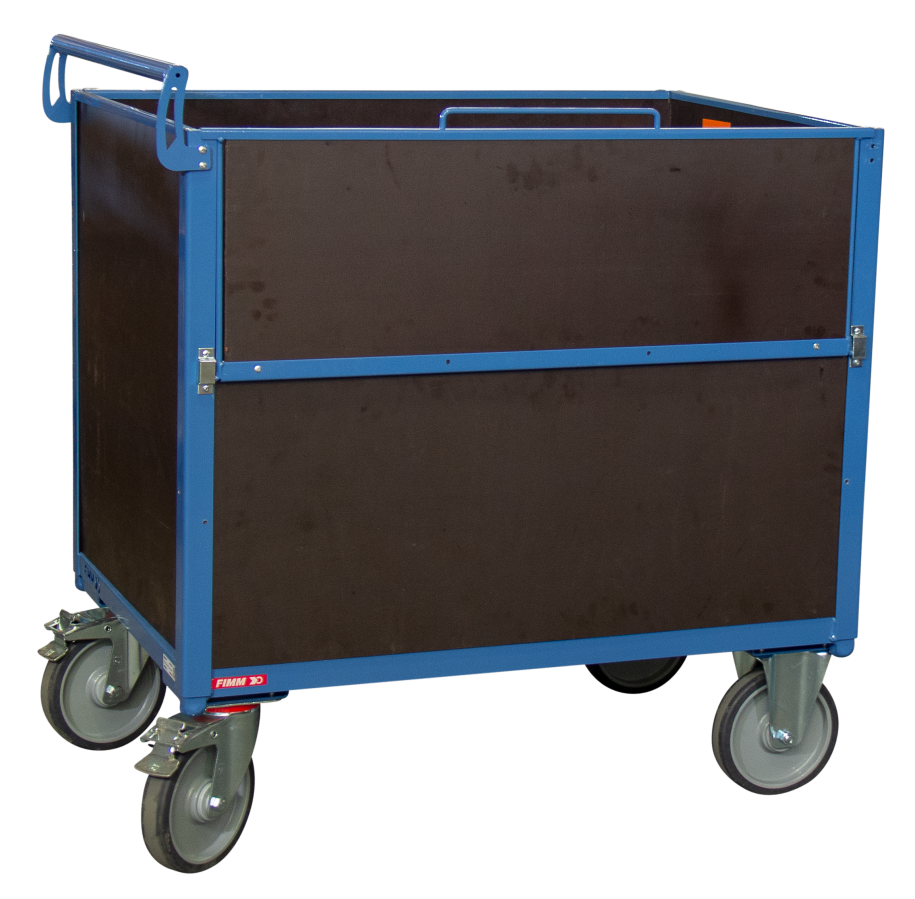

- Wood: 9mm thick film-coated plywood on two bakelite-faced sides. The bottom tray is also covered with a bakelite panel. Rot-proof, easy to clean, ideal for damp environments.

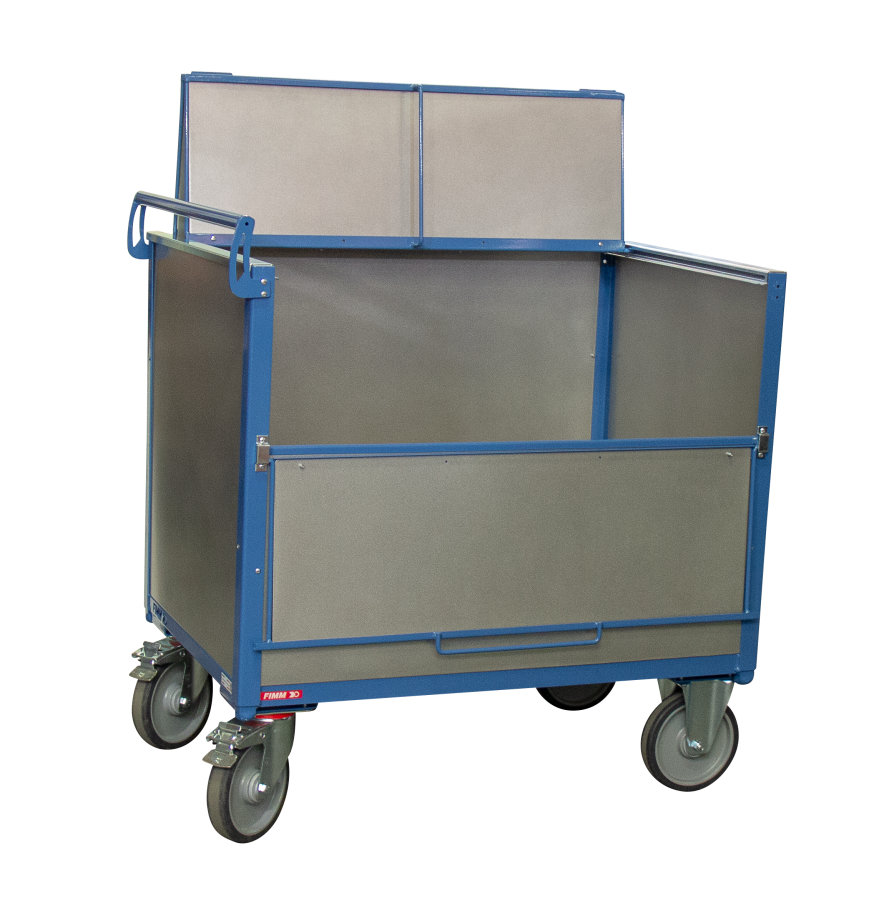

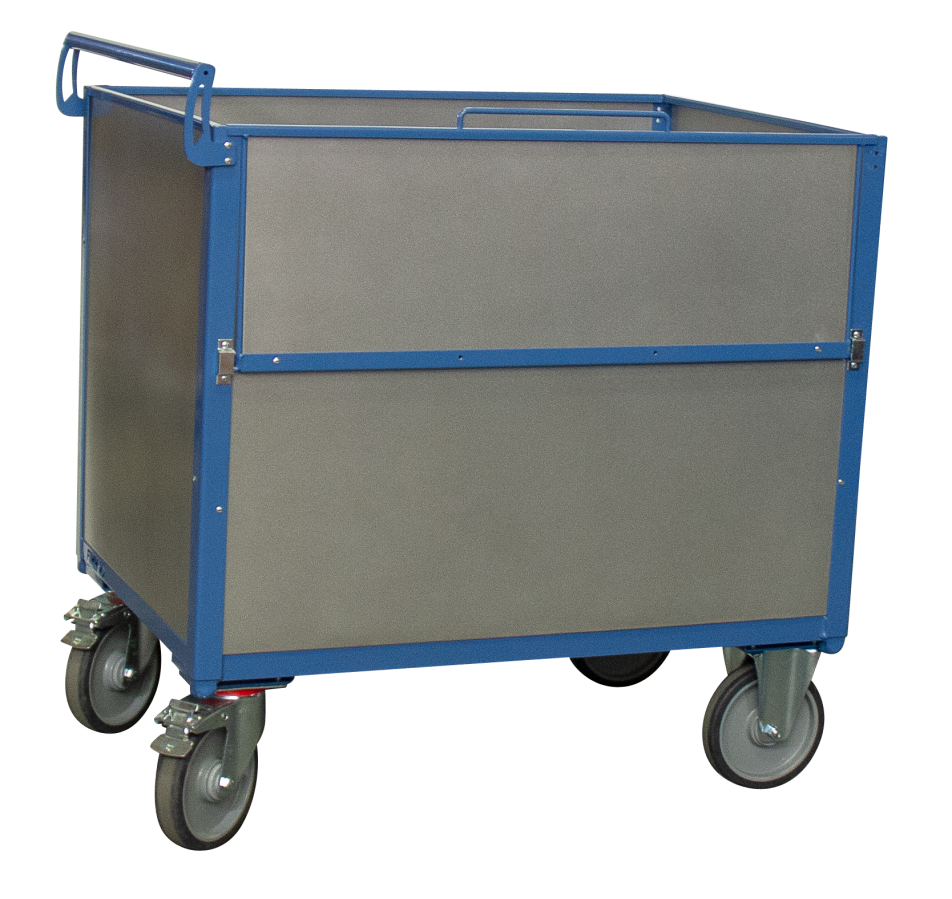

- Galvanized Sheet: 20/10th thickness. The bottom tray is also covered with a galvanized sheet plate.
Technical data
ROOF |
CLADDING |
PLATFORM DIM. MM |
USABLE DIM. MM | OVERALL DIM. MM |
Ø WHEELS |
TREAD |
WEIGHT KG |
Without Roof |
Wire mesh |
1000×700 |
950×650×700 |
1105×725×1095 |
200 |
TPE |
50 |
1200×800 |
1150×750×700 |
1305×825×1095 |
58 |
||||
Sheet metal |
1000×700 |
950×650×700 |
1105×725×1095 |
70 |
|||
1200×800 |
1150×750×700 |
1305×825×1095 |
84 |
||||
Wood |
1000×700 |
950×650×700 |
1105×725×1095 |
51 |
|||
1200×800 |
1150×750×700 |
1305×825×1095 |
57 |
||||
Galvanized sheet metal |
1000×700 |
950×650×700 |
1105×725×1095 |
79 |
|||
1200×800 |
1150×750×700 |
1305×825×1095 |
96 |
||||
With Roof |
Wire mesh |
1000×700 |
950×650×700 |
1105×725×1095 |
56 |
||
1200×800 |
1150×750×700 |
1305×825×1095 |
63 |
||||
Sheet metal |
1000×700 |
950×650×700 |
1105×725×1095 |
82 |
|||
1200×800 |
1150×750×700 |
1305×825×1095 |
99 |
||||
Wood |
1000×700 |
950×650×700 |
1105×725×1095 |
57 |
|||
1200×800 |
1150×750×700 |
1305×825×1095 |
66 |
||||
Galvanized sheet metal |
1000×700 |
950×650×700 |
1105×725×1095 |
94 |
|||
1200×800 |
1150×750×700 |
1305×825×1095 |
115
|
See the technical table
