Modular PVC Trolleys 500 kg
These modular carts adapt to your needs and feature customizable PVC paneling.
Product benefits
• Modular, these trolleys adapt to your needs. Customizable PVC cover.
• This range comes in different configurations and adapts to the operator's needs in record time. Choose from 1 or 2 removable backrests, 1 or 2 removable sides. The sides are positioned in rails and equipped with holding hooks for a secure fit with the backrest.
• Expanded plastic PVC covering, lightweight and easy to maintain.
• Mechanically welded steel frame reinforced from underneath, ensuring excellent long-term durability.
• Backrest in Ø 28 mm tube for a good grip. Ergonomic push height of 1020 mm. Useful backrest height: 500 mm.
• Embedded 16 mm medium wood platform. Very resistant, does not split or crack despite repeated shocks. No risk of splinters.
• 2 fixed + 2 pivot wheels with brakes mounted on ball bearings, non-marking, silent. Starting effort reduced by 50%. Compliant with EN 1757 standard.
• Delivered assembled.

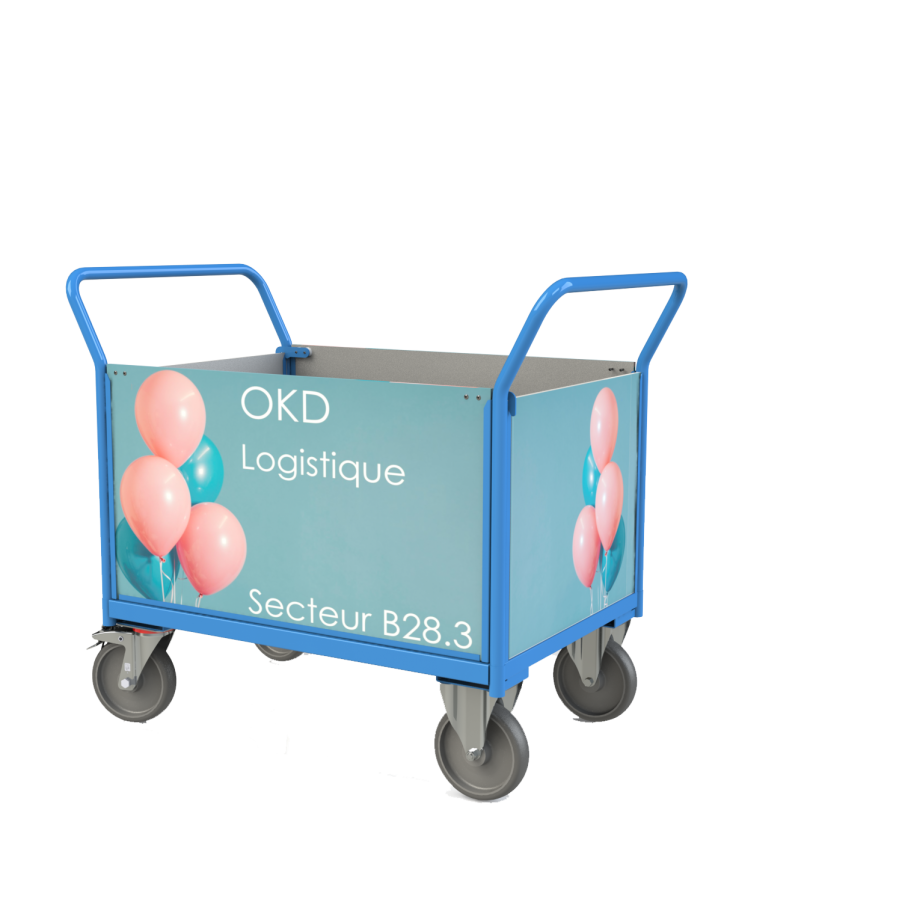

• Personalize the backrests and sides with your logo, a theme...
• Optional: non-slip rubber mat, trays, writing desks, antistatic wheels, hitch and handle for train deployment...
Technical data
|
Model |
Tray dimensions mm |
Overall dimensions L x W x H mm |
Ø Wheels mm |
Tread |
Weight kg |
|

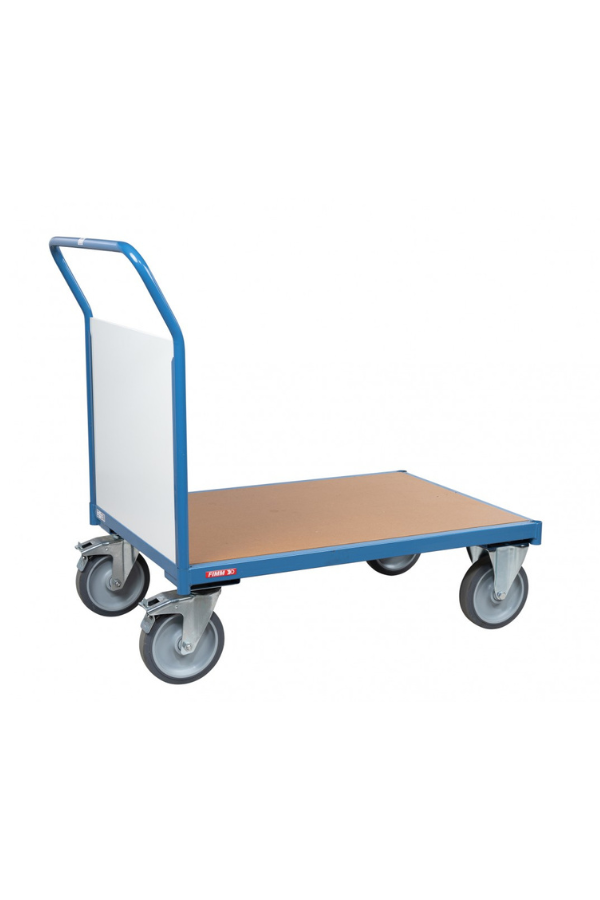

1 panel |
1000 x 700 |
1100 x 700 x 1020 |
200 |
TPE |
30 |
|
1200 x 800 |
1300 x 800 x 1020 |
34 |
|||
|

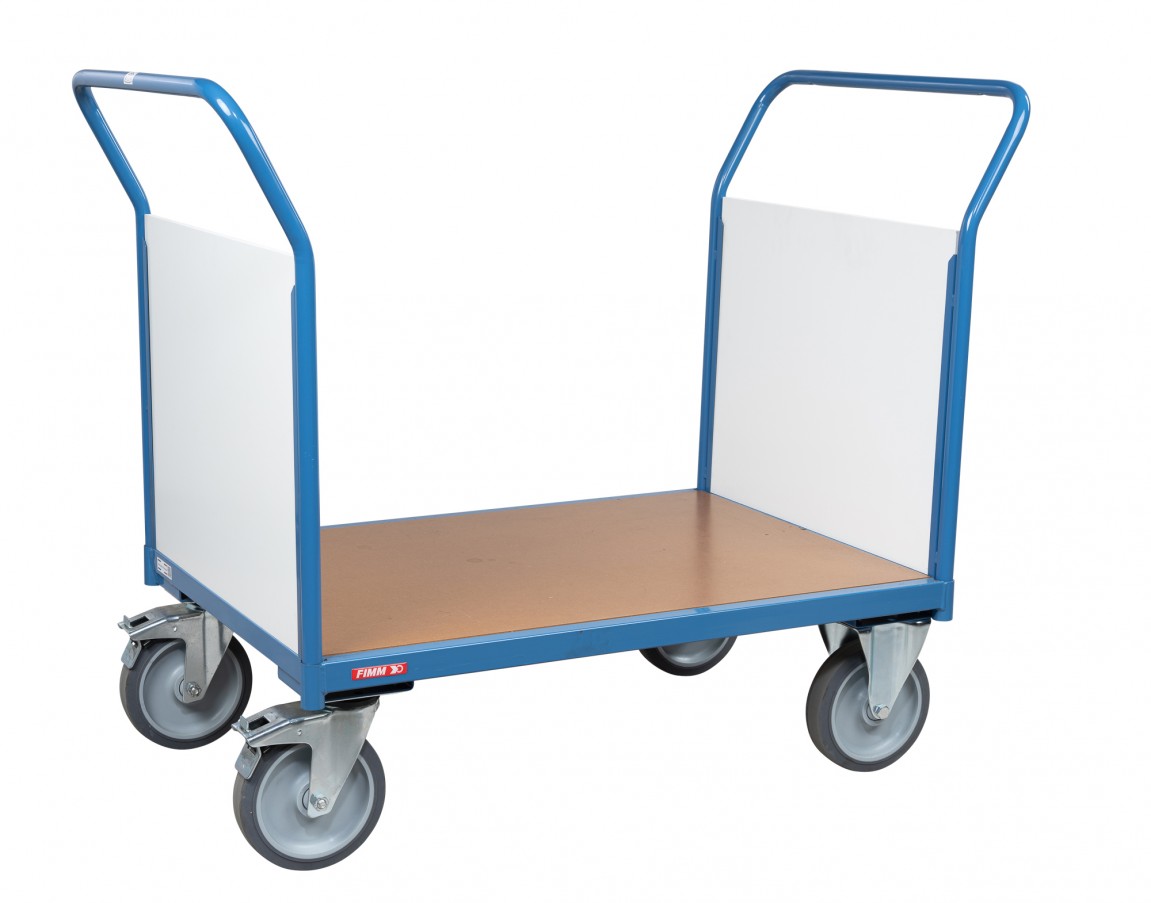

2 panels |
1000 x 700 |
1200 x 700 x 1020 |
35 |
||
|
1200 x 800 |
1400 x 800 x 1020 |
40 |
|||
|
2 panels + 1 side panel |
1000 x 700 |
1200 x 700 x 1020 |
38,5 |
||
|
1200 x 800 |
1400 x 800 x 1020 |
44 |
|||
|

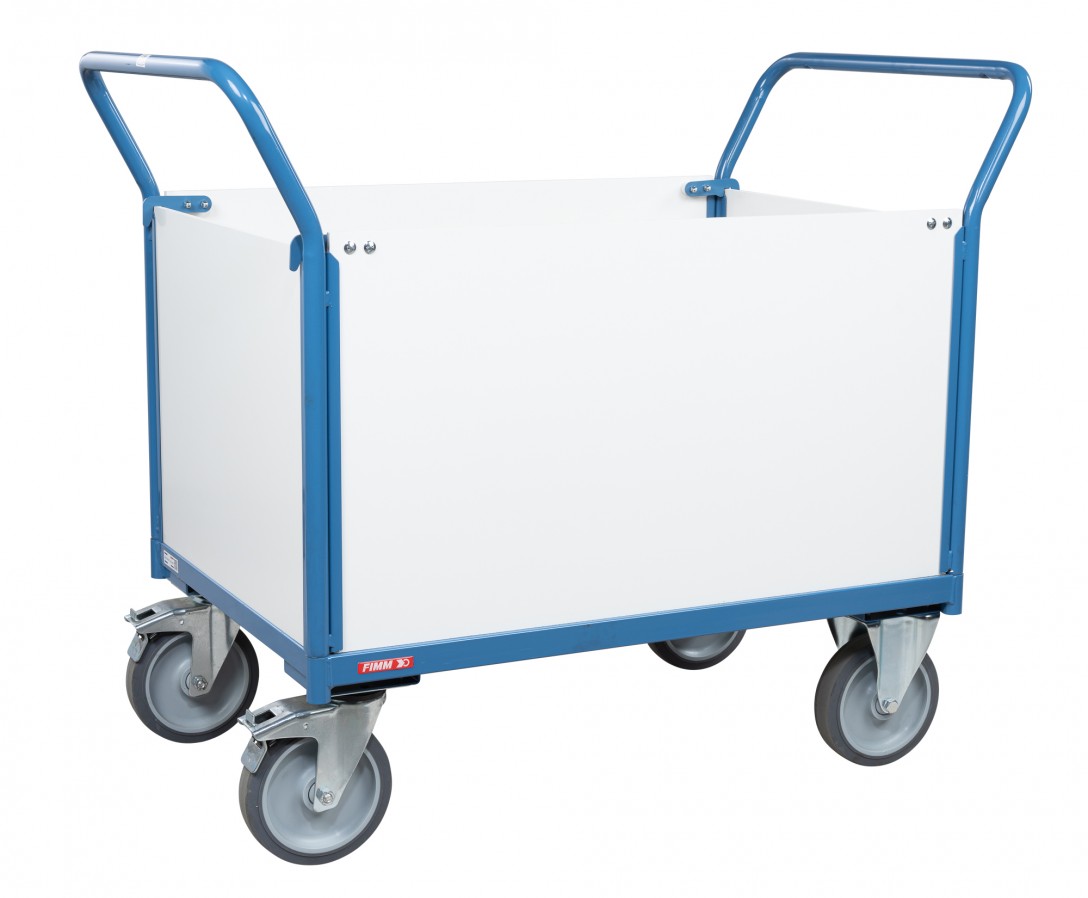

2 panels + 2 side panels |
1000 x 700 |
1200 x 700 x 1020 |
42 |
||
|
1200 x 800 |
1400 x 800 x 1020 |
48 |
