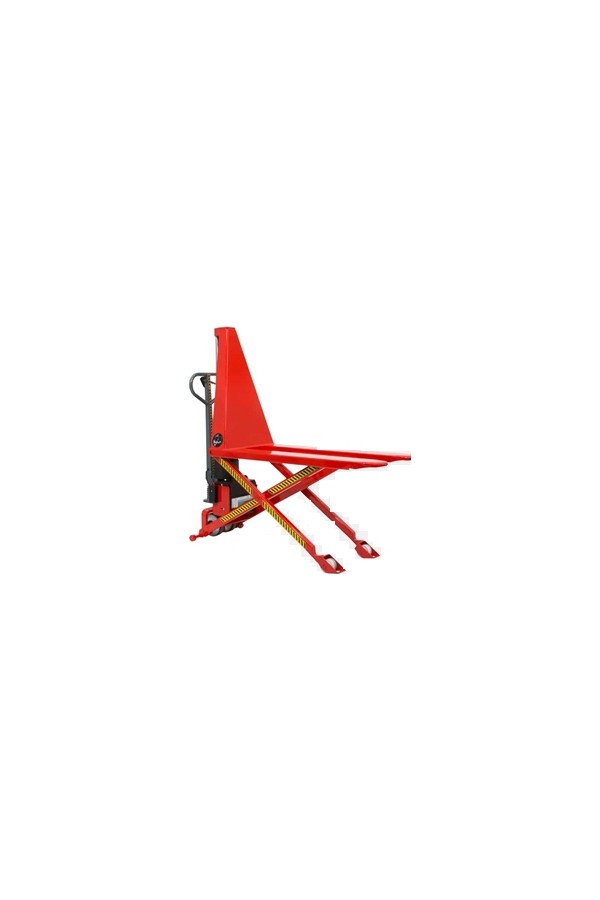

Steel High Lift Pallet Truck - 1000 kg
With its small footprint and excellent manoeuvrability, this high lift pallet truck is a practical means of moving and raising pallets to a predetermined position.
Product benefits
Robust welded construction.
Heavy duty steel frame, powder coated finish.
The lift is controlled electrically by a button on the tiller and manually by a lever.
Can also be raised manually in case of battery failure.
Equipped with an emergency stop key switch.
Load level indicator visible and accessible by coloured diodes.
Hydraulic cylinder with 1 piston to avoid multiple leaks.
Equipped with shoes that lock the unit to the ground once the load is up.
Also has 2 side stabilisers at the rear which, for maximum safety from 400mm lift, come to rest completely on the ground and prevent the unit from rolling.
Integrated electronic loader.
Delivered assembled, with user manual and CE certificate in French.
100% EUROPEAN PRODUCTION.
2 year warranty (excluding parts subject to wear and tear).
Technical data
Force : 1000 Kg
Rear wheel diameter : 180 mm
Rear wheel type : PU
Front wheel diam : 82 mm
Front wheel type : Nylon
Load capacity : 1000 kg
Distance from centre of fork : 600 mm
Fork height in maximum position : 800 mm
Fork height in low position: 88 mm
Total length: 1655 mm
Total width: 560 mm
Tiller height in straight position: 1230 mm
Height of carriage: 938 mm
Fork dimensions: 33 x 160 x 1200 mm
Distance between tiller and fork face: 455 mm
Radius rotation angle : 1540 mm
Lift speed loaded/unloaded : 0.05/0.08
Lowering speed : Manual progressive
Electric motor: 12V/0.8KW
Battery Voltage, nominal capacity, capacity: 12V/6A/50Ah/5h
Weight Battery: 20 kg
Weight with battery: 155 kg
See the technical table
